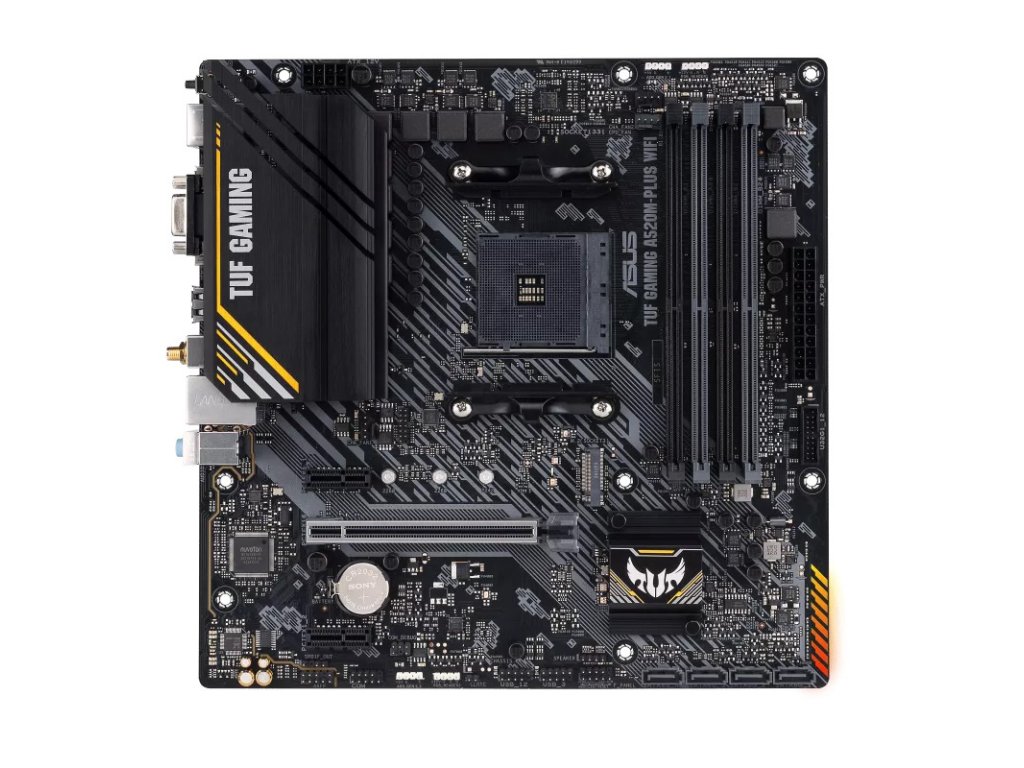

ASUS TUF GAMING A520M-PLUS WIFI/AM4/mATX

Chipset: AMD A520
Rozměrový formát: microATX (24.4cm x 24.4cm)
Podpora pro procesory: AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
Pozice na paměti: 4 x DIMM, Dual Channel Memory Architecture
Podpora pro paměti: DDR4 4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/3000/2800/2666/2400/2133 MHz
Max.velikost operační paměti: 128 GB
Podpora pro paměti typu: ECC
Grafické výstupy: (na základě procesoru) *1 x DisplayPort 1.2 *1 x HDMI 2.1(4K@60Hz) *1 x D-Sub
Zvuková karta: Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC
Síťová karta: *1 x Realtek 1Gb Ethernet *Wi-Fi 5 (802.11 a/b/g/n/ac) *Bluetooth v5.0
Rozšiřující sloty: *1 x PCIe 3.0 x16 slot (supports x16 mode) *2 x PCIe 3.0 x1 slots
RAID řadič: RAID 0, 1, 10
SATA: 4 x SATA 6Gb/s ports
M.2: 1 x M.2 slot
USB: *
Interní: *1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports *2 x USB 2.0 headers support additional 3 USB 2.0 ports *
Externí: *4 x USB 3.2 Gen 1 ports (4 x Type-A) *2 x USB 2.0 ports (2 x Type-A)
Interní porty: *
Fan and cooling related *1 x 4-pin CPU Fan header *2 x 4-pin Chassis Fan headers *
Power related *1 x 24-pin Main Power connector *1 x 8-pin +12V Power connector *
Storage related *1 x M.2 slot (Key M) *4 x SATA 6Gb/s ports *
USB *1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports *2 x USB 2.0 headers support additional 3 USB 2.0 ports *
Miscellaneous *2 x AURA Addressable Gen 2 header Neous *2 x AURA RGB headers *1 x Clear CMOS header *1 x COM Port header *1 x Front Panel Audio header (AAFP) *1 x S/PDIF Out header *1 x Speaker header *1 x SPI TPM header (14-1pin) *1 x 10-1 pin System Panel header
Externí porty: *4 x USB 3.2 Gen 1 ports (4 x Type-A) *2 x USB 2.0 ports (2 x Type-A) *1 x DisplayPort *1 x HDMI port *1 x D-Sub *1 x ASUS Wi-Fi Module *1 x Realtek 1Gb Ethernet port *3 x Audio jacks *1 x BIOS FlashBack button *1 x PS/2 Keyboard/Mouse combo port
BIOS: UEFI AMI BIOS, 128 Mb Flash ROM
